Getting Started
Power on your DU(L/S).
Connect your Ethernet Cable to port LMT B and your Ericsson supplied Serial Cable to LMT A.

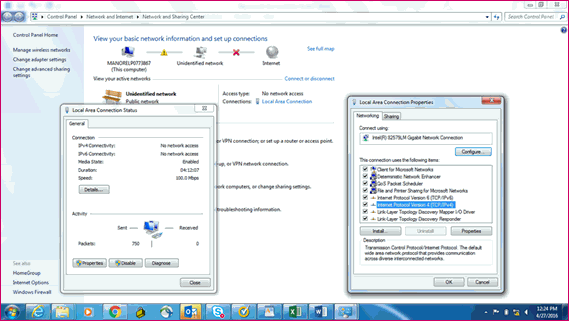

Open your network connections>Local area connections.
Click Properties and then select IP v4.
