LMT Splitter for DUS Only

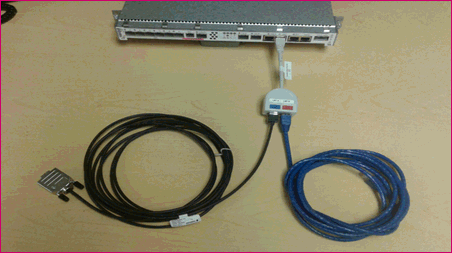

The LMT splitter combines both Ethernet and serial in to one DU connection port (LMT). Ericsson provided serial cable.
